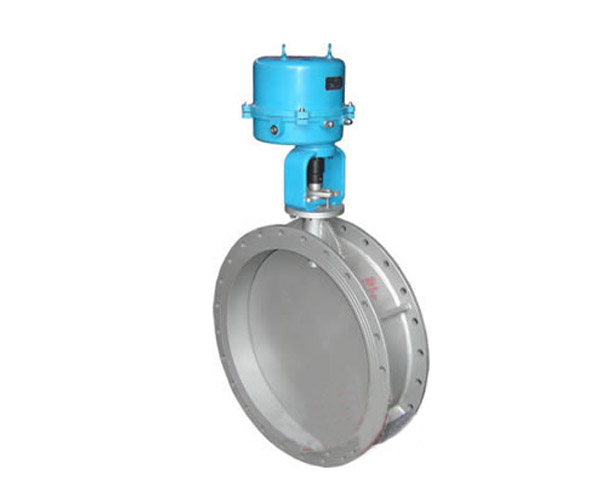

角式自動調節蝶閥，普遍適用于建材、玻璃、礦山、電力、輕工、造紙等行業的通風、環保工程等管道系統中。對管道中氣體介質按不同控制信號調節流量大小和切斷。
This valve is widely used in the pipe system such as venting and environment protection in building material, glass, mining, power, light industry and papermaking departments. It can change the flow and cut off gas medium in the pipe by the different control signal.
結構特點：
Structure characteristic:
角式自動調節蝶閥，采用優質鋼材焊接。具有結構合理、耐磨損、流阻損失小、操作靈活、指示方位明確、維護方便、使用壽命長等優點�？伤桨惭b或垂直安裝。配用DKJ、ZKJ、伯納德等電動執行器及有關配件，可實現手動、自動無干擾切換，微機程控、自動控制或中央集中控制，是實現自動化控制操作、調節流量的理想設備。
The valve is welded in fine steel, having the features of compact structure, endurance, little in the lost of flow resistance, definite direction, easy to maintenance and long life. It can be installed in horizontal or vertical. The valve is used with DKJ, ZKJ, Bernard electric actuator and other accessory to form a complete set to realize manual and automatic exchange without interference, micro-computer long-range control, automatic control or center concentrating control. It is the ideal equipment of realizing operation of automatic control and adjusting flow.
性能參數：
Performance parameter:
公稱壓力 Nominal pressure | 介質流速 Medium velocity | 泄漏率 Leakage ratio | 適用溫度 Suitable temperature | 適用介質 Suitable medium | |
0.05MPa | ≤25m/s | ≤1％ | C | Mn | 空氣、煙氣、粉塵氣體等 Air, smoke , gas with powder etc |
≤300℃ | ≤350℃ | ||||
FZAJW---0.5C Mn外形連接尺寸：
Appearance joint dimensions:
A1×A2 | B1×B2 | C1×C2 | B | b | n-d | X | Y | E | L1 | L2 | 執行器參數 Parameter |
200×200 | 245×245 | 280×280 | 180 | 8 | 8- Φ12 | 2 | 2 | 1030 | 445 | 550 | DKJ-210 T:100N·m P:0.025KW |
250×250 | 305×305 | 350×350 | 180 | 8 | 12- Φ12 | 3 | 3 | 1080 | 445 | 550 | |
320×250 | 375×305 | 420×350 | 180 | 8 | 12- Φ12 | 3 | 3 | 1150 | 445 | 550 | |
320×320 | 375×375 | 420×420 | 180 | 8 | 12- Φ12 | 3 | 3 | 1150 | 445 | 550 | |
400×320 | 455×375 | 500×420 | 180 | 8 | 14- Φ14 | 4 | 3 | 1250 | 445 | 550 | |
400×400 | 455×455 | 500×500 | 200 | 10 | 16- Φ14 | 4 | 4 | 1280 | 520 | 600 | DKJ-310 T:250N·m P:0.065KW |
500×320 | 555×375 | 600×420 | 200 | 10 | 16- Φ14 | 5 | 3 | 1380 | 520 | 600 | |
500×400 | 555×455 | 600×500 | 200 | 10 | 18- Φ14 | 5 | 4 | 1380 | 520 | 600 | |
500×500 | 555×555 | 600×600 | 200 | 10 | 20- Φ14 | 5 | 5 | 1380 | 520 | 600 | |
630×320 | 685×375 | 730×420 | 200 | 10 | 18- Φ14 | 6 | 3 | 1530 | 520 | 600 | |
630×400 | 685×455 | 730×500 | 200 | 10 | 20- Φ14 | 6 | 4 | 1530 | 520 | 600 | |
630×500 | 685×555 | 730×600 | 200 | 10 | 22- Φ14 | 6 | 5 | 1530 | 520 | 600 | |
630×630 | 685×685 | 730×730 | 220 | 10 | 24- Φ14 | 6 | 6 | 1670 | 620 | 600 | DKJ-410 T:600N·m P:0.16KW |
800×400 | 855×455 | 900×500 | 220 | 10 | 22- Φ14 | 7 | 4 | 1840 | 620 | 600 | |
800×500 | 855×555 | 900×600 | 220 | 10 | 24- Φ14 | 7 | 5 | 1840 | 620 | 600 | |
800×630 | 855×685 | 900×730 | 220 | 10 | 26- Φ14 | 7 | 6 | 1840 | 620 | 600 | |
800×800 | 855×855 | 900×900 | 220 | 10 | 28- Φ14 | 7 | 7 | 1840 | 620 | 600 | |
1000×400 | 1070×470 | 1130×530 | 220 | 12 | 22- Φ18 | 8 | 3 | 2040 | 620 | 600 | |
1000×500 | 1070×570 | 1130×630 | 220 | 12 | 24- Φ18 | 8 | 4 | 2040 | 620 | 600 | |
1000×630 | 1070×700 | 1130×760 | 220 | 12 | 26- Φ18 | 8 | 5 | 2040 | 620 | 600 | |
1000×800 | 1070×870 | 1130×930 | 260 | 12 | 28- Φ18 | 8 | 6 | 2220 | 630 | 650 | DKJ-510 T:1600N·m P:0.4KW |
1000×1000 | 1070×1070 | 1130×1130 | 260 | 12 | 32- Φ18 | 8 | 8 | 2220 | 630 | 650 | |
1250×400 | 1320×470 | 1380×530 | 260 | 12 | 26- Φ18 | 10 | 3 | 2470 | 630 | 650 | |
1250×500 | 1320×570 | 1380×630 | 260 | 12 | 28- Φ18 | 10 | 4 | 2470 | 630 | 650 | |
1250×630 | 1320×700 | 1380×760 | 260 | 12 | 30- Φ18 | 10 | 5 | 2470 | 630 | 650 | |
1250×800 | 1320×870 | 1380×930 | 260 | 12 | 32- Φ18 | 10 | 6 | 2470 | 630 | 650 | |
1250×1000 | 1320×1070 | 1380×1130 | 300 | 16 | 36- Φ22 | 10 | 8 | 2470 | 630 | 650 | |
1600×630 | 1670×700 | 1730×760 | 300 | 16 | 36- Φ22 | 13 | 5 | 2840 | 630 | 650 | |
1600×800 | 1670×870 | 1730×930 | 300 | 16 | 38- Φ22 | 13 | 6 | 2840 | 630 | 650 | |
1600×1250 | 1670×1320 | 1730×1380 | 340 | 16 | 46- Φ22 | 13 | 10 | 2840 | 630 | 650 | DKJ-610A T:2500N·m P:0.65KW |
2000×800 | 2070×870 | 2130×930 | 340 | 16 | 42- Φ22 | 15 | 6 | 3330 | 630 | 650 | |
2000×1000 | 2070×1070 | 2130×1130 | 340 | 16 | 46- Φ22 | 15 | 8 | 3330 | 630 | 650 |
