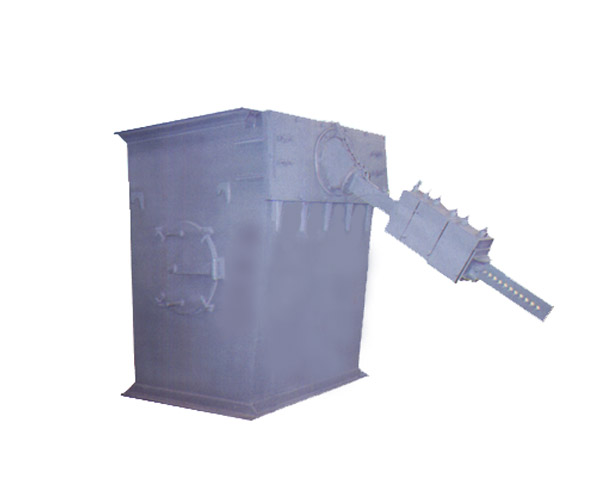

料調節器普遍適用于建材、礦山、冶金、石化、電力等行業。用于物料加工、運輸、篩選等系統中的物料調節和吸收、緩解物料從高處下落所產生的沖擊及粉塵飛揚。能使物料均勻、平穩、規則地緩緩溜到受料裝置上。物料調節器系列型式多樣、適用廣泛、一機多用，在系統中使用本物料調節器可不再設置其它物料緩沖設施和導流裝置。
The material adjustor is widely used in building material, mining, metallurgy, oil chemical and electric power industries etc. it adjusts, absorbs and slows the impact and powder rising, which is aroused by the material falling from high altitude. It is used in the system of material processing, transporting and filtering. The material slide to the receiver device equably, calmly and regularly. The type of the adjustor is various and the applicability is wide. There is no need to setup other material cushion device and guiding device when the adjustor is installed in working system.
結構特點：
Structure characteristics:
物料調節器是在總結以往各類型物料卸灰、調節設備的基礎上研制開發的新式、先進的系列產品，結構采用杠桿原理，獨特的傳動方式，封閉式的外形，使之具有外形緊湊，啟閉靈活，耐磨損、生產運行安全可靠、使用壽命長等特點。本調節器可使下落的物料所產生的飛揚粉塵圍困在調節器腔體內，作無規則運動，粉塵之間相互碰撞使其運動逐漸衰減直至靜止，粉塵不能溢出污染環境，為獲得一個較好的生產環境而創造了有利的條件。
The adjustor is the newest and most advanced product which is designed on the base of all kinds of material discharging and adjusting equipment. The structure makes use of lever principle. The transmission type is particular and the figure is close. It has features of compact structure, flexible open and close, endurance, reliable operation and long life etc. The flying powder dust of falling material can be closed in the body. The pumping among dust grain can reduce the moving until dust is immobile. Dust can not overflow to pollute environment so we can have a good operating circumstance.
工作原理：
Working principle:
調節器密封腔體容器內，設有可自動開啟、關閉，轉動靈活可靠并具有抗沖擊、抗振動、耐磨損能力的擋板。擋板的運行由帶有一配重塊的連桿來實現，連桿及配重塊均封閉于兩側箱體內。當調節器存有一定量的物料時，擋板便自動打開，物料順著擋板開口自然、均勻、平穩地溜下，粉塵仍然封存于調節器內不能溢出。調節器的減振裝置消除了擋板及配重塊在開啟、關閉過程中的振力。
The baffle is set in the sealing body of adjustor, which can open or close automatically, running freely. The baffle also can resist impact and quiver and the ability of anti-abrasion is great. The baffle is controlled by the connecting pole with a heavy block. The connecting pole and heavy block are closed in the body on two sides. The baffle can open automatically when there is some material in the adjustor. The material slip along the baffle smoothly and powder dust is remained in the body. The shock absorber can clear the shock force which is produced when the baffle and heavy block open and close.
性能參數：
Performance parameter:
公稱壓力 Nominal pressure | 介質流速 Medium velocity | 適用溫度 Suitable temperature | 適用介質 Suitable medium |
0.05MPa | ≤28m/s | ≤150℃ | 固體物料、晶體物料 Solid powder, crystalloid |
WLT--Ⅰ外形連接尺寸：
Appearance joint dimensions:
A×A | B×B | C×C | H | H1 | M | E | n-d | α | β或β1 |
450×450 | 505×505 | 550×550 | 850 | 200 | 690 | 120 | 16-Ф14 | 55°/60° | 0~18° |
600×600 | 655×655 | 700×700 | 850 | 200 | 840 | 120 | 20-Ф14 | 55°/60° | 0~18° |
700×700 | 755×755 | 800×800 | 1050 | 200 | 940 | 120 | 20-Ф14 | 55°/60° | 0~18° |
800×800 | 855×855 | 900×900 | 1050 | 200 | 1040 | 120 | 24-Ф14 | 55°/60° | 0~18° |
900×900 | 955×955 | 1000×1000 | 1350 | 200 | 1140 | 120 | 24-Ф14 | 55°/60° | 0~18° |
1000×1000 | 1070×1070 | 1130×1130 | 1350 | 200 | 1240 | 120 | 28-Ф18 | 55°/60° | 0~18° |
1100×1100 | 1170×1170 | 1230×1230 | 1450 | 200 | 1340 | 120 | 28-Ф18 | 55°/60° | 0~18° |
1200×1200 | 1270×1270 | 1330×1330 | 1450 | 200 | 1440 | 120 | 28-Ф18 | 55°/60° | 0~18° |
WLT--Ⅱ外形連接尺寸：
Appearance joint dimensions:
A×A | B×B | C×C | H | H1 | M | n-d | α | β或β1 |
450×450 | 505×505 | 550×550 | 800 | 200 | 690 | 16-Ф14 | 55°/60° | 0~18° |
600×600 | 655×655 | 700×700 | 800 | 200 | 840 | 20-Ф14 | 55°/60° | 0~18° |
700×700 | 755×755 | 800×800 | 1000 | 200 | 940 | 20-Ф14 | 55°/60° | 0~18° |
800×800 | 855×855 | 900×900 | 1000 | 200 | 1040 | 24-Ф14 | 55°/60° | 0~18° |
900×900 | 955×955 | 1000×1000 | 1200 | 200 | 1140 | 24-Ф14 | 55°/60° | 0~18° |
1000×1000 | 1070×1070 | 1130×1130 | 1200 | 200 | 1240 | 28-Ф18 | 55°/60° | 0~18° |
1100×1100 | 1170×1170 | 1230×1230 | 1300 | 200 | 1340 | 28-Ф18 | 55°/60° | 0~18° |
1200×1200 | 1270×1270 | 1330×1330 | 1300 | 200 | 1440 | 28-Ф18 | 55°/60° | 0~18° |
WLT--Ⅲ外形連接尺寸：
Appearance joint dimensions:
A×A | B×B | C×C | H | H1 | M | N | E | n-d | α | β或β1 |
450×450 | 505×505 | 550×550 | 800 | 200 | 690 | 570 | 200 | 16-Ф14 | 55°/60° | 0~18° |
600×600 | 655×655 | 700×700 | 800 | 200 | 840 | 720 | 200 | 20-Ф14 | 55°/60° | 0~18° |
700×700 | 755×755 | 800×800 | 1000 | 200 | 940 | 820 | 200 | 20-Ф14 | 55°/60° | 0~18° |
800×800 | 855×855 | 900×900 | 1000 | 200 | 1040 | 920 | 200 | 24-Ф14 | 55°/60° | 0~18° |
900×900 | 955×955 | 1000×1000 | 1200 | 200 | 1140 | 1020 | 200 | 24-Ф14 | 55°/60° | 0~18° |
1000×1000 | 1070×1070 | 1130×1130 | 1200 | 200 | 1240 | 1120 | 200 | 28-Ф18 | 55°/60° | 0~18° |
1100×1100 | 1170×1170 | 1230×1230 | 1300 | 200 | 1340 | 1220 | 200 | 28-Ф18 | 55°/60° | 0~18° |
1200×1200 | 1270×1270 | 1330×1330 | 1300 | 200 | 1440 | 1320 | 200 | 28-Ф18 | 55°/60° | 0~18° |
WLT--Ⅳ外形連接尺寸：
Appearance joint dimensions:
A×A | B×B | C×C | H 55°/60° | L | M | N | n-d | α |
450×450 | 505×505 | 550×550 | 655/693 | 750 | 690 | 570 | 16-Ф14 | 55°/60° |
600×600 | 655×655 | 700×700 | 655/693 | 750 | 840 | 720 | 20-Ф14 | 55°/60° |
700×700 | 755×755 | 800×800 | 819/866 | 950 | 940 | 820 | 20-Ф14 | 55°/60° |
800×800 | 855×855 | 900×900 | 819/866 | 950 | 1040 | 920 | 24-Ф14 | 55°/60° |
900×900 | 955×955 | 1000×1000 | 983/1039 | 1200 | 1140 | 1020 | 24-Ф14 | 55°/60° |
1000×1000 | 1070×1070 | 1130×1130 | 983/1039 | 1200 | 1240 | 1120 | 28-Ф18 | 55°/60° |
1100×1100 | 1170×1170 | 1230×1230 | 1065/1126 | 1300 | 1340 | 1220 | 28-Ф18 | 55°/60° |
1200×1200 | 1270×1270 | 1330×1330 | 1065/1126 | 1300 | 1440 | 1320 | 28-Ф18 | 55°/60° |
使用說明：
Usage explanation
l 安裝前必須清潔閥門內腔，不允許有任何雜物和污垢附著。
l 安裝前先檢查閥門各傳動部分是否完好，試運行無誤后將閥門處于全閉狀態再進行安裝。
l 法蘭連接時兩法蘭間必須加密封墊，然后均勻鎖緊聯接螺栓。
l 根據客戶實際工況需要調整配重塊來保證下料量及下料頻率。
l The body must be cleaned before installed and there is no dirt and sundries clinging to the body
l Check the transmission part before install. Close the valve and install the valve after there is no mistake.
l Add sealed shim between the two flanges. Lock down the connecting bolt after add sealing washer.
l Adjust the heavy block according to the working condition of user to ensure the feeding amount and feeding frequency.
運輸及保管：
Transportation and protection
l 運輸時避免撞擊調節器，調節器擋板應處于全閉位置，以防在運輸中擋板及傳動部件損壞。
l 運輸時傳動部位應作防潮、防雨處理。
l 調節器應存放在干燥的室內，不允許露天存放或堆置。
l 調節器長期存放時應使設備處于關閉狀態，各傳動部位加潤滑油,作防潮、防塵處理。
l Avoid bumping and the baffle is in full close in order to avoid damage of baffle and driving part
l Treatment of dampproof and vainproof should be done to transmission part when transport.
l The adjustor should be stored in dry room and can not be stored or piled up in open air.
l It should be in full close state when long stored. Add lubrication to the transmission part and the device should be dampproof and dustproof.
維護及檢修：
Maintenance and examination
l 定期檢查各傳動部位的運行情況。
l 定期給各傳動部位加潤滑油。
l 每次檢修后，應重新調整配重設施，對檢修情況作記錄。
l Examine the operation condition of transmission parts regularly.
l Add lubricant to transmission parts regularly.
l Adjust heavy device and note the examination result after examining.
訂貨須知：
Information for order
l 選型時請注明規格口徑及與用戶系統相適應的安裝型式，確認安裝角度及下料角度。（安裝型式、安裝角度、下料角度均參照調節器外形圖）。
l 選用訂貨時，請參照我公司產品樣本注明完整的產品的規格、型號及技術參數。
l 用于特殊介質或其它特殊要求，請與我公司經銷部、技術部聯系，可為您另行設計、制造。
l Please indicate the specification caliber and installation type suited to user’s system. Make sure of the angle of installation and feeding. Installation type, installation angle and feeding angle refer to appearance figure of adjustor.
l Please indicate the type, model and technical parameter referring to the product sample when you place an order.
l If you have other special demand or need special medium. Please contract with our department of market and technology. We can design and manufacture for you especially.
