本系列鐘形卸灰閥廣泛適用于冶金、建材、石化、電力等行業，作為各工業爐窯及除塵系統的卸灰裝置。
This series valve is widely used in metallurgy, building material, oil chemical and electric power industries etc. It is the discharging device of stove and removing dust system.
結構特點：
Structure characteristic:

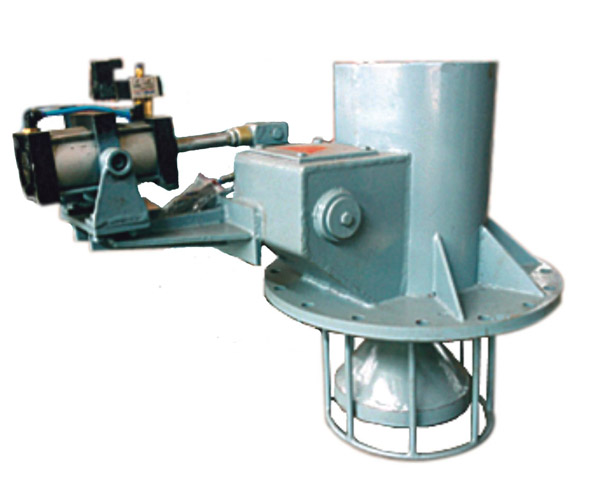

該鐘形卸灰閥由閥體、錐形閥塞、連桿、驅動裝置等組成，用連桿拉動閥塞上下運動完成啟閉動作。其中X型為橡膠軟密封，應用于冶煉高爐噴煤系統的煤粉輸送控制。W型為閥體本體材料密封，應用于除塵系統塵灰輸送控制。
This valve is made up of body, cone valve plug, connected pole, driving device etc. The plug drew by the connected pole moves up and down to complete the action of open and close. Type X denotes rubber soft seal, which is applied to carrying control of coal powder in smelt blast furnace gushing coal system. Type W denotes body material seal, which is applied to carrying control of dust powder in removing dust system.
性能參數：
Performance parameter:
公稱壓力 Nominal pressure | 0.4MPa |
適用溫度 Suitable temperature | 80～150℃ |
密封試驗壓力 Seal test pressure | 0.44MPa |
強度試驗壓力 Strength test pressure | 0.6MPa |
適用介質 Suitable medium | 含煤氣塵灰、煙氣塵灰煤粉等干燥細粉物料 Dust with coal gas and smoke, dry powder |
工作原理：
Working principle:
手動鐘形卸灰閥利用力矩平衡的方法實現卸灰。當作用于錐形塞上的物料產生的力矩大于重錘搖桿產生的力矩時，錐形塞打開向下卸灰。一旦積灰卸去后，重錘與搖桿產生的力矩使錐形塞迅速關閥。落料的頻率及卸灰量依據工況需要來調整重錘位置。
執行機構得到程序指令后推動搖桿使錐形塞打開向下卸灰，積灰卸去后，依據程序規定時間，推桿推進使錐形塞關閉密閉。執行機構的推出與推進都有行程控制，同時反饋開關信號。
The valve realizes discharging using trimming moment. When the moment made by material on cone plug is greater than that of heavy hammer and rocker, the plug will open adown to discharge. After discharge the moment made by heavy hammer and rocker will drive cone plug close quickly. Dropping material frequency and discharge amount is determined by the working condition demand to adjust heavy hammer position.
Actuator drives the rocker after receives program order, and the rocker drives the plug open adown to discharge dust. Draw stem drives the plug to close according to the program time after discharge. Push and extrusion of actuator are controlled by journey and feed back switch signal at the same time.
XH--- X W系列外形連接尺寸：
Appearance joint dimension:
DN | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 |
D | 370 | 420 | 480 | 530 | 620 | 670 | 720 | 835 | 935 | 1055 |
D1 | 330 | 380 | 440 | 490 | 570 | 620 | 670 | 780 | 880 | 990 |
D2 | 280 | 330 | 380 | 430 | 500 | 550 | 600 | 700 | 800 | 900 |
D3 | 390 | 440 | 500 | 550 | 650 | 700 | 750 | 865 | 965 | 1083 |
D4 | 350 | 400 | 460 | 510 | 600 | 650 | 700 | 810 | 910 | 1020 |
D5 | 240 | 290 | 340 | 390 | 450 | 500 | 550 | 650 | 750 | 850 |
H | 350 | 400 | 450 | 500 | 550 | 600 | 640 | 680 | 730 | 760 |
H1 | 480 | 530 | 580 | 630 | 680 | 730 | 770 | 810 | 860 | 890 |
L1 | 755 | 805 | 855 | 925 | 975 | 1025 | 1075 | 1275 | 1375 | 1475 |
L2 | 740 | 790 | 840 | 910 | 960 | 1010 | 1060 | 1200 | 1300 | 1400 |
n-d | 8-Φ18 | 12-Φ18 | 12-Φ22 | 12-Φ22 | 16-Φ22 | 16-Φ22 | 20-Φ22 | 20-Φ26 | 24-Φ26 | 24-Φ30 |
電動推桿 Electric draw stem | DTⅠA25-M P：0.025kw | DTⅠA63-M P：0.06kw | DTⅠA100-M P：0.25kw | |||||||
氣動推桿 Pneumatic draw stem | 10A-5TCC32B | 10A-5TCC40B | 10A-5TCC50B | |||||||
使用說明：
Operation instruction:
l 安裝時請注意閘門本體上標明介質流向，清除內腔附著物。兩法蘭連接時必須加密封墊片，然后均勻鎖緊螺栓。
l 設備在運行時，請定期給傳動部分加潤滑油。執行部分定期維護和檢修。
l 若長期存放應使設備處于關閉狀態，各傳動部位加潤滑油，不允許露天存放或堆置。
l Pay attention to the direction of medium in valve body. Clean the inner body. Add seal cushion between two flanges connection and screw down bolt
l Please add lubricant to transmission when equipment is operating and maintain and check the actuator regularly.
l Add lubricant to transmission part when valve is long stored. It should not be placed or piled up in the open air.
